Characteristic
The proximity sensor is a kind of sensor that depending on feels the exterior object to influence its internal oscillator to achieve output transformation. It may the non-contact type induce, the induction precision is high, the reaction rate is quick, the resistance to interference is good, environment adaptiveness, against oil, waterproofing, and the service life is long.
Model explanation
 |
| type |
| HL |
Inductive type |
| HC |
Capacity type |
| HD |
Analogue output type |
| HR |
Hall type |
|
| External dimensions |
| M8 |
M8 cylinder |
| M12 |
M12 cylinder |
| M18 |
M18 cylinder |
| M30 |
M30 cylinder |
| S17 |
Small square shape
17×17×28 |
| S18 |
Small square shape
18×18×36 |
|
| Installation |
| N |
Non-shielded
type |
| S |
Shielded type |
|
| Sensing range |
| 1 |
1mm |
| 2 |
2mm |
| 4 |
4mm |
| 5 |
5mm |
| 8 |
8mm |
| 10 |
10mm |
| 15 |
15mm |
|
| Power source and output |
| A |
AC supply |
| N |
DC NPN output |
| P |
DC PNP output |
| T |
DC two-wire output |
|
| Output operation |
| O |
Normally open |
| C |
Normally closed |
| OC |
Normally open
And Normally closed |
| R |
Relay |
|

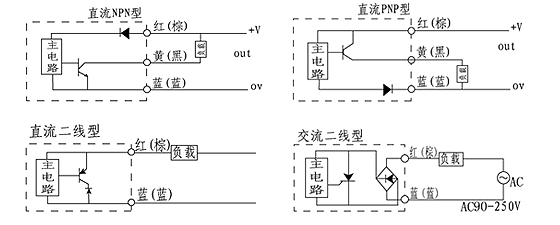

Wiring diagram
Installation requirements
When installing the proximity sensor, if the surroundings have the metal, the sensor opposition or the apposed arrangement, please be bigger than the size in the chart to show to install, in order to avoid affecting the switch ‘s Reliable action. (S n expression Set range)
 |
|
|
|
