Photoelectric Sensors |
|
 |
| Type |
Cylindrical Photoelectric Sensors |
| Series |
HG-M18-T |
HG-M18-R |
HG-M18-M |

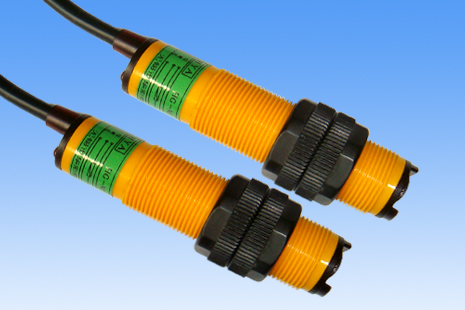

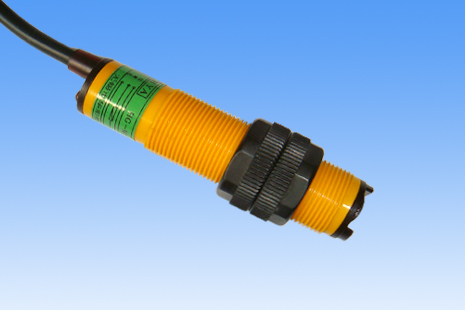

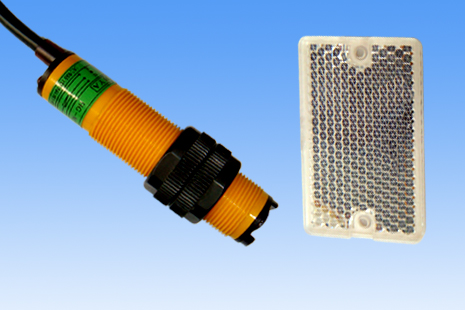

| Appearance |
 |
 |
 |

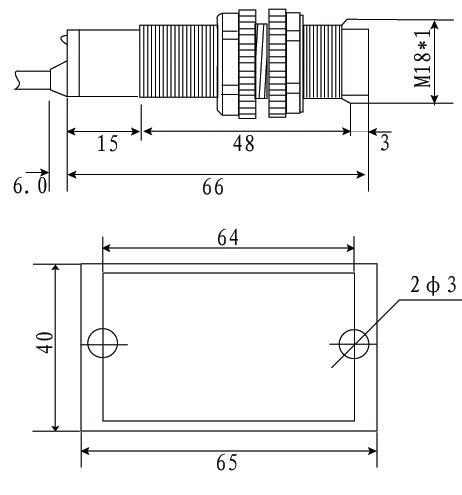

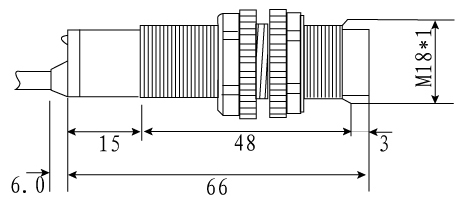

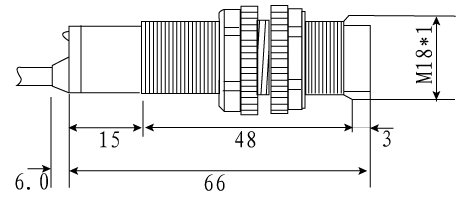

| Dimensions |
 |
 |
 |
| Set range(Sn) |
0-20m |
0-50cm |
0-2m |
| Model No. |
DC three-wire system |
NPN |
HG-M18-T20NO |
HG-M18-RO3NO |
HG-M18-M2NO |
| HG-M18-T20NC |
HG-M18-RO3NC |
HG-M18-M2NC |
| PNP |
HG-M18-T20PO |
HG-M18-RO3PO |
HG-M18-M2PO |
| HG-M18-T20PC |
HG-M18-RO3PC |
HG-M18-M2PC |
| AC two-wire system |
HG-M18-T20AO |
HG-M18-RO3AO |
HG-M18-M2AO |
| HG-M18-T20AC |
HG-M18-RO3AC |
HG-M18-M2AC |
| Sensor object |
Translucency, opaque |
Transparency, opaque |
Translucency, opaque |
| Max response frequency（HZ） |
DC： 200HZ AC： 20HZ |
| Hysteresis |
20% or less of Sn |
| Supply voltage |
Sn≤5m:10-30VDC Sn≤5m：18-30VDC AC：90-250V |
| Load capacity |
150mA or less |
| Pressure drop |
DC three: ≤1V AC two-wire system: ≤10V |
| Leakage current |
1mA or less |
| Power source consumption |
30mA or less |
| Guard mode |
Reverse polarity protection |
| Directional angle |
3°-10° |
3°-15° |
3°-30° |
|
| Ambient temperature |
-25℃ - +70℃ |
| Material |
Plastic |
|
|
|
