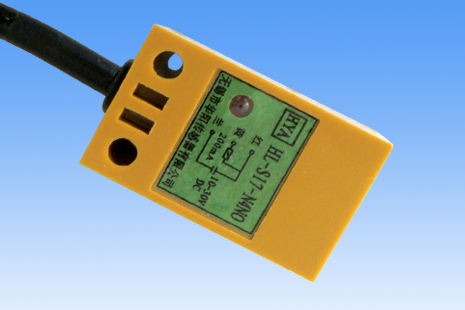

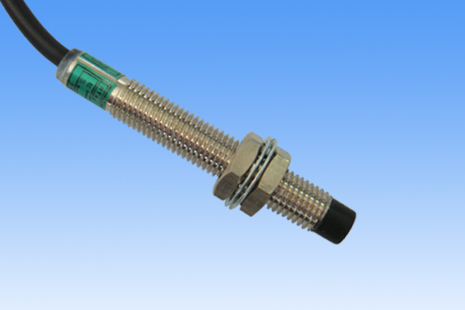

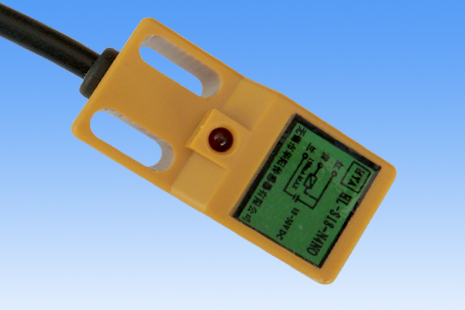

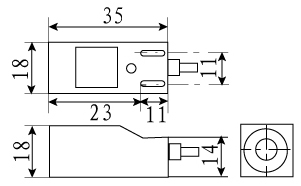

Proximity Sensors >> Inductance type proximity sensors (2)   Inductance type proximity sensors (2)   Type Inductance type proximity sensors Series HL-S17 HL-S18 HL-M8 Appearance Dimensions Set range(Sn) 4mm 4mm Shielded type 1mm Non-shielded type 2mm Model No. DC two-wire system HL-S17-N4TO HL-S18-N4TO HL-M8-S1TO HL-M8-N2TO HL-S17-N4TC HL-S18-N4TC HL-M8-S1TC HL-M8-N2TC DC three-wire system NPN HL-S17-N4NO HL-S18-N4NO HL-M8-S1NO HL-M8-N2NO HL-S17-N4NC HL-S18-N4NC HL-M8-S1NC HL-M8-N2NC PNP HL-S17-N4PO HL-S18-N4PO HL-M8-S1PO HL-M8-N2PO HL-S17-N4PC HL-S18-N4PC HL-M8-S1PC HL-M8-N2PC AC two-wire system HL-S17-N4AO HL-S18-N4AO – – HL-S17-N4AC HL-S18-N4AC – – Sensor range 0-4mm 0-4mm 0-0.8mm 0-1.8mm Sensor object Iron17×17×1mm Iron18×18×1mm Iron8×8×1mm Max response frequency （HZ） DC： 800HZ AC：20HZ DC：600HZ AC：20HZ 1KHZ 500HZ Hysteresis 10% or less of Sn Supply voltage DC two: 15-30V    DC three:10-30V    AC two:90-250V Load capacity DC two: ≤100mA   DC three:≤200mA   AC two:≤150mA Pressure drop DC two: ≤6V      DC three:≤1V      AC two:≤10V Leakage current DC two: ≤1mA     DC three:≤0.5mA   AC two:≤1mA Guard mode Reverse polarity protection Ambient temperature -25℃ - +70℃ Protection IP67 Material Plastic Plastic Brass
