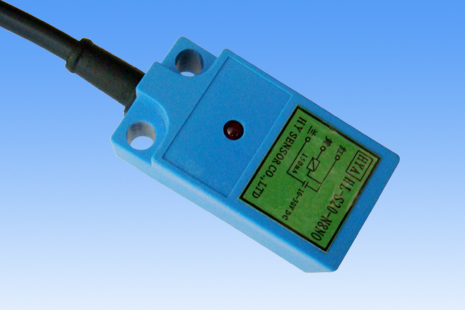

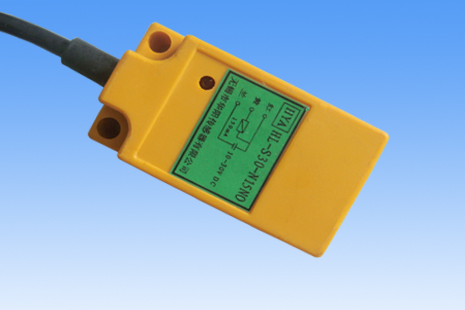

Proximity Sensors >> Inductance type proximity sensors (3)   Inductance type proximity sensors (3)   Type Inductance type proximity sensors Series HL-S20 HL-S30 Appearance Dimensions Set range(Sn) 8mm 15mm Model No. DC two-wire system HL-S20-N8TO HL-S30-N15TO HL-S20-N8TC HL-S30-N15TC DC three-wire system NPN HL-S20-N8NO HL-S30-N15NO HL-S20-N8NC HL-S30-N15NC PNP HL-S20-N8PO HL-S30-N15PO HL-S20-N8PC HL-S30-N15PC AC two-wire system HL-S20-N8AO HL-S30-N15AO HL-S20-N8AC HL-S30-N15AC Sensor range 0-8mm 0-15mm Sensor object Iron 18×18×1mm Iron 30×30×1mm Max response frequency (HZ) DC：500 AC：20 DC：500 AC：20 Hysteresis 10% or less of Sn Supply voltage DC two:15-30V     DC three:10-30V      AC two:90-250V Load capacity DC two:≤100mA    DC three:≤200mA     AC two:≤150mA Pressure drop DC two:≤6V       DC three:≤1V        AC two:≤10V Leakage current DC two:≤1mA      DC three:≤0.5mA     AC two:≤1mA Guard mode Reverse polarity protection Ambient temperature -25℃ - +70℃ Protection IP67 Material Plastic
