Proximity Sensors >> Inductance type proximity sensors (1) |
|
 |
| Inductance type proximity sensors (1) |
| |
| type |
Inductance type proximity sensors |
| Series |

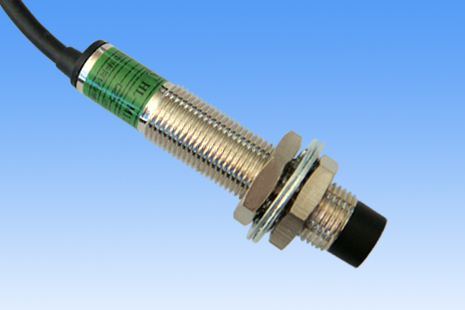

HL-M12 |

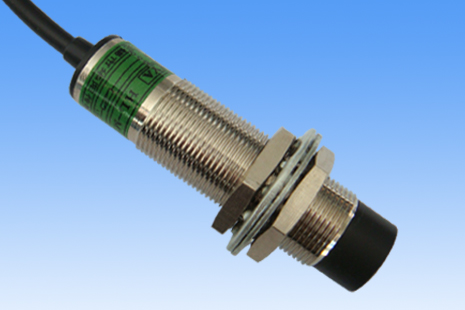

HL-M18 |

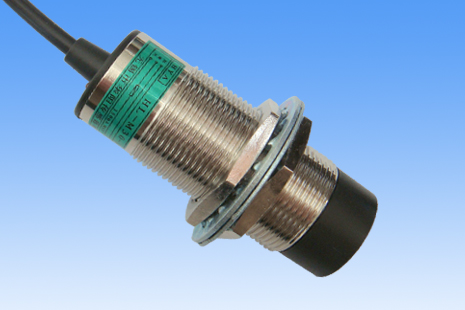

HL-M30 |
| Appearance |
 |
 |
 |

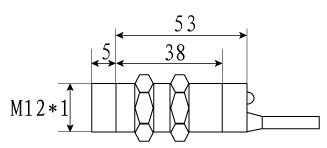

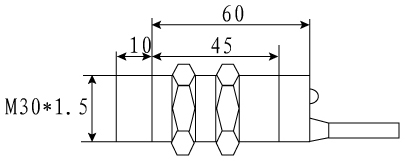

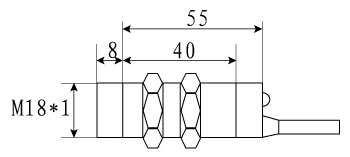

| Dimensions |
 |
 |
 |
| Set range(Sn) |
Shielded type 2mm |
Non-shielded type 4mm |
Shielded type 5mm |
Non-shielded type 8mm |
Shielded type 10mm |
Non-shielded type 15mm |
| Model No. |
DC two-wire system |
HL-M12-S2TO |
HL-M12-N4TO |
HL-M18-S5TO |
HL-M18-N8TO |
HL-M30-S10TO |
HL-M30-N15TO |
| HL-M12-S2TC |
HL-M12-N4TC |
HL-M18-S5TC |
HL-M18-N8TC |
HL-M30-S10TC |
HL-M30-N15TC |
| DC three-wire system |
NPN |
HL-M12-S2NO |
HL-M12-N4NO |
HL-M18-S5NO |
HL-M18-N8NO |
HL-M30-S10NO |
HL-M30-N15NO |
| HL-M12-S2NC |
HL-M12-N4NC |
HL-M18-S5NC |
HL-M18-N8NC |
HL-M30-S10NC |
HL-M30-N15NC |
| PNP |
HL-M12-S2PO |
HL-M12-N4PO |
HL-M18-S5PO |
HL-M18-N8PO |
HL-M30-S10PO |
HL-M30-N15PO |
| HL-M12-S2PC |
HL-M12-N4PC |
HL-M18-S5PC |
HL-M18-N8PC |
HL-M30-S10PC |
HL-M30-N15PC |
| AC two-wire system |
HL-M12-S2AO |
HL-M12-N4AO |
HL-M18-S5AO |
HL-M18-N8AO |
HL-M30-S10AO |
HL-M30-N15AO |
| HL-M12-S2AC |
HL-M12-N4AC |
HL-M18-S5AC |
HL-M18-N8AC |
HL-M30-S10AC |
HL-M30-N15AC |
| Sensor range |
0-1.8mm |
0-3.6mm |
0-4.5mm |
0-7.2mm |
0-9mm |
0-13mm |
| Sensor object |
Iron12×12×1mm |
Iron18×18×1mm |
Iron30×30×1mm |
| Max response frequency (HZ) |
DC：800
AC：20 |
DC：400
AC：20 |
DC：400
AC：20 |
DC：200
AC：20 |
DC：200
AC：20 |
DC：100
AC：20 |
| Hysteresis |
10% or less of Sn |
| Supply voltage |
DC two: 15-30V DC three:10-30V AC two:90-250V |
| Load capacity |
DC two: ≤100mA DC three:≤200mA AC two:≤150mA |
| Pressure drop |
DC two: ≤6V DC three:≤1V AC two:≤10V |
| Leakage current |
DC two: ≤1mA DC three:≤0.5mA AC two:≤1mA |
| Guard mode |
Reverse polarity protection |
| Ambient temperature |
-25℃ - +70℃ |
| Protection |
IP67 |
| Material |
Plastic, brass |
|
|
|
