capacity type proximity sensors, Analogue output type proximity sensors, Hall sensors |
 |
| Capacity type proximity sensors, Analogue output type proximity sensors, Hall sensors |
| |
| Type |
Capacity type proximity sensors |
Analogue output type proximity sensors |
Hall type sensors |
| Series |
HC-M18 |
HD-M18 |
HR-M12 |

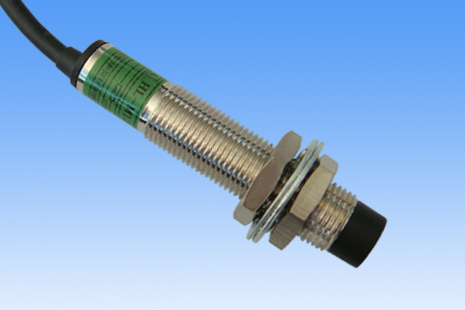

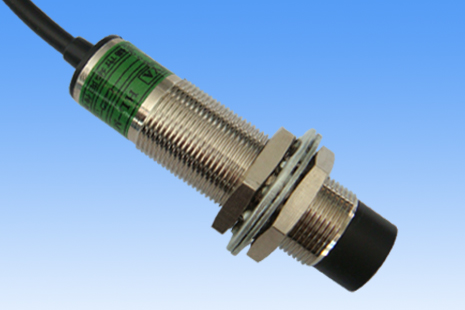

| Appearance |
 |
 |
 |

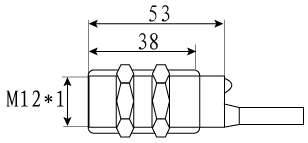

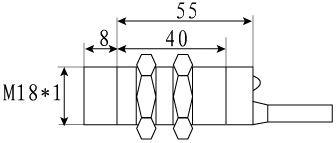

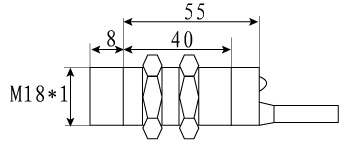

| Dimensions |
 |
 |
 |
| Set range(Sn) |
8mm |
8mm |
4mm |
| Model No. |
DC two-wire system |
HC-M18-N8TO |
HD-M18-N8TO |
HR-M12-N4TO |
| HC-M18-N8TC |
HD-M18-N8TC |
HR-M12-N4TC |
| DC three-wire system |
NPN |
HC-M18-N8NO |
HD-M18-N8NO |
HR-M12-N4NO |
| HC-M18-N8NC |
HD-M18-N8NC |
HR-M12-N4NC |
| PNP |
HC-M18-N8PO |
HD-M18-N8PO |
HR-M12-N4PO |
| HC-M18-N8PC |
HD-M18-N8PC |
HR-M12-N4PC |
| AC two-wire system |
HC-M18-N8AO |
– |
HR-M12-N4AO |
| HC-M18-N8AC |
– |
HR-M12-N4AC |
| Sensor range |
0-8mm |
0-8mm |
Decided by the strength of the magnetic field |
| Sensor object |
Iron, non-iron |
Iron 18×18×1mm |
Magnet |
| Max response frequency (HZ) |
DC：500 AC 2 20 |
– |
2K |
| Hysteresis |
10% or less of Sn |
– |
50% or less of Sn |
| Supply voltage |
DC：10-30V
AC：90-250V |
15-30V DC |
D：10-30V AC 2 90-250V |
| Load capacity |
≤150mA |
0-5V、0-10V、4-20mA |
≤150mA |
| Pressure drop |
DC two: ≤6V DC three:≤1V AC two: ≤10V |
| Leakage current |
DC two: ≤1mA DC three:≤0.5mA AC two: ≤1mA |
| Guard mode |
Reverse polarity protection |
| Ambient temperature |
-25℃ - +70℃ |
| Protection |
IP67 |
| Material |
Plastic, brass |
|
|
|
